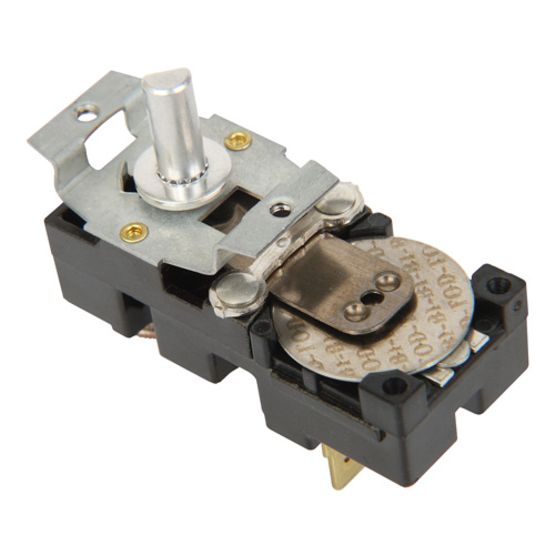

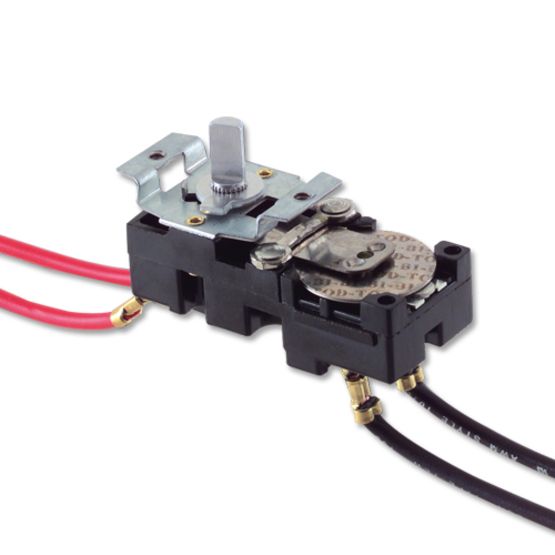

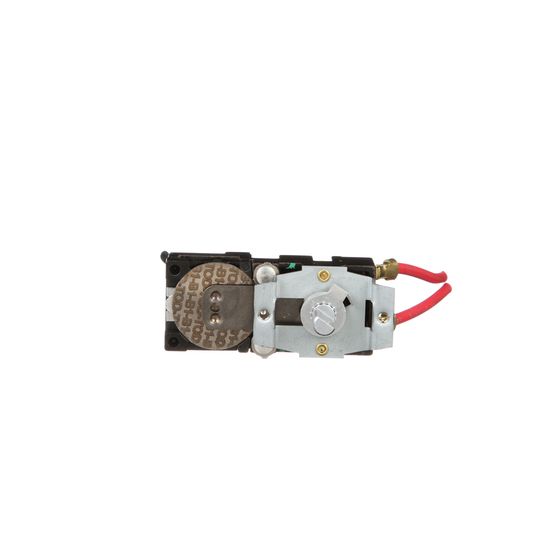

58T Adjustable Bi-metal Control
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: HVAC
Brand: Therm-O-Disc
The 58T is an adjustable temperature control designed for applications requiring accurate calibration tolerances and narrow temperature differential. The snap-action of the bi-metal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 25 amps at 277VAC. Typical applications include electric baseboard heaters, portable and built-in electric heaters, attic ventilator fans and room air conditioners.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Adjustable Auto Reset
- 66°C / 150°F
- 25
- Available with auxiliary mechanically operated contacts to provide double pole break in the “off” position for electric heat or a “fan on only” feature
- Mechanical positive off prevents contacts from closing regardless of ambient temperature
- Quick connect terminals or lead wires
- Single pole, single throw
- Variety of mounting brackets and adjusting stems
