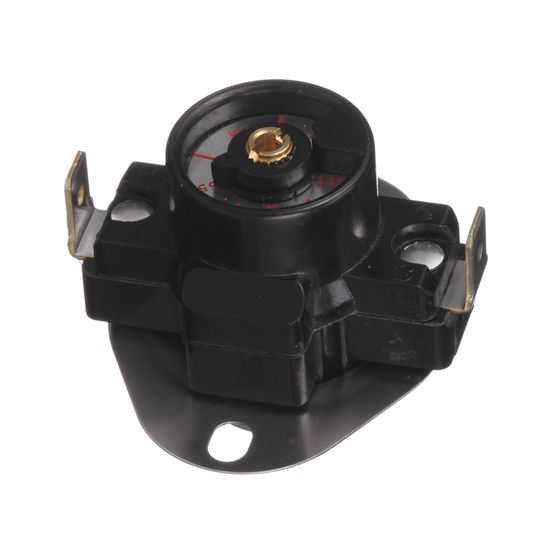

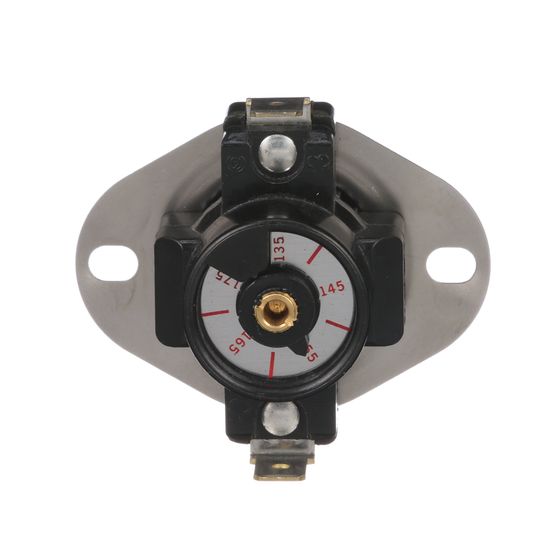

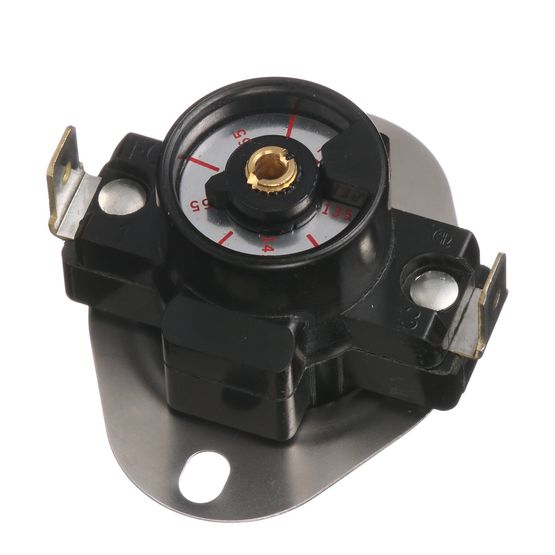

74T Adjustable Temperature Controls

Technology: Safety limits and Controls

Product Category: Bi-metal

Application: Appliance, HVAC

Brand: Therm-O-Disc

The 74T line of temperature controls features adjustable fan or limit operation in a versatile disc design. The 74T allows adjustment of the operating temperature within an approximate thermal range. The snap-action of the temperature sensing bi-metal disc provides high-speed contact separation for exceptional life characteristics at electrical loads up to 25 amps at 240 VAC.

  • Function:
  • Max Calibration:
  • Max Electrical Amperage:
  • Adjustable Auto Reset
  • 121°C / 200°F
  • 25
  • Adjustable operating temperatures for maximum design or service flexibility
  • Welded construction for integrity of current-carrying components

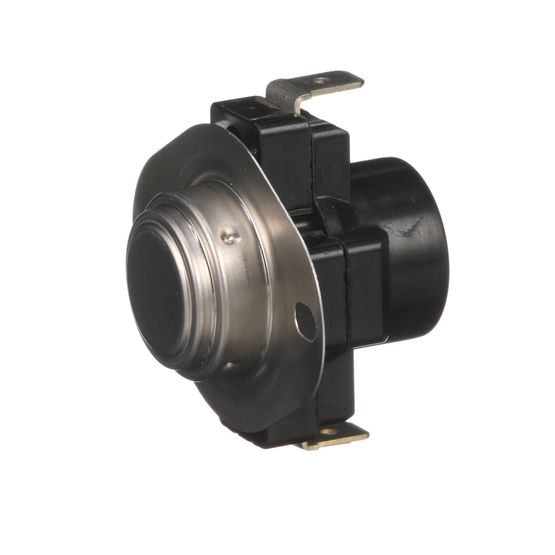

  • Available with an exposed or enclosed bi-metal disc for either increased thermal response or protection from airborne contaminants

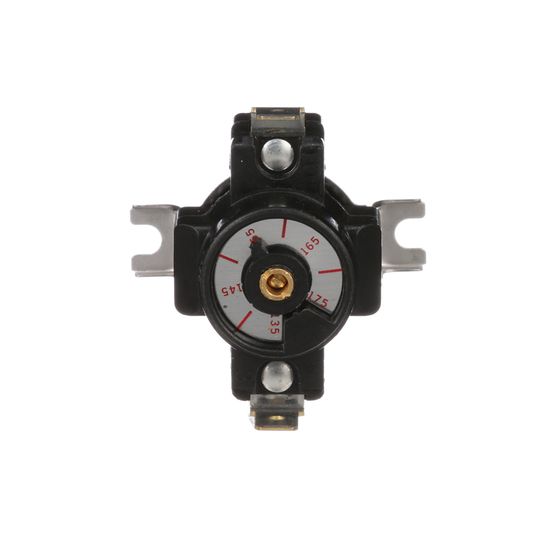

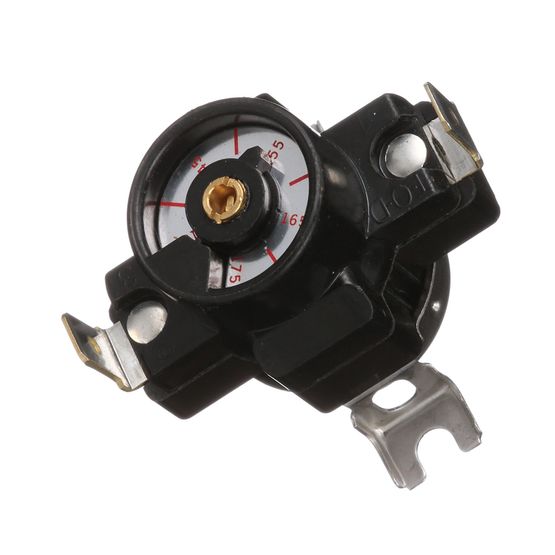

  • Airstream or surface mounting flanges are available

Agency Ratings

(consult catalog for details)
