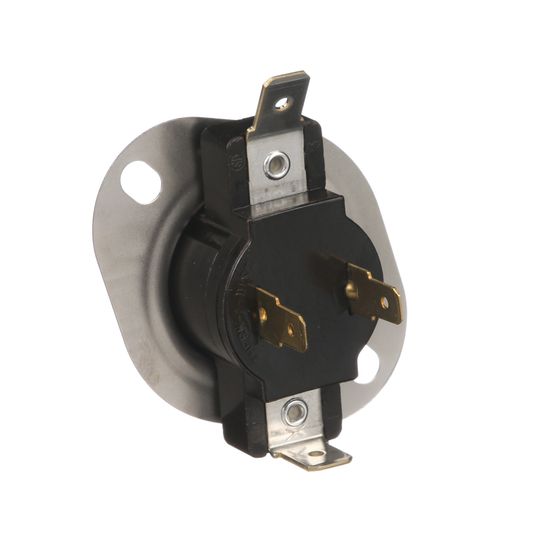

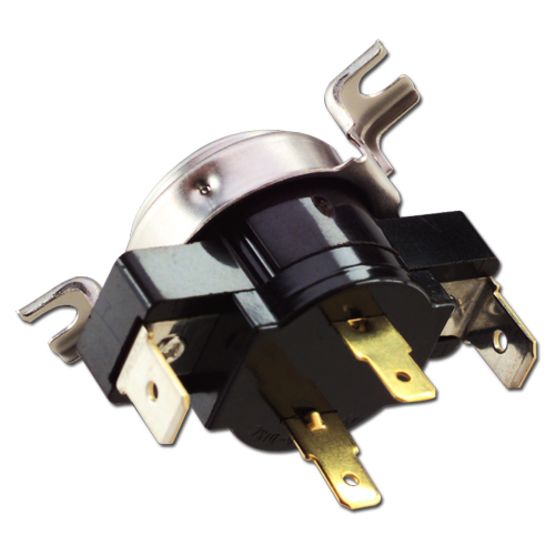

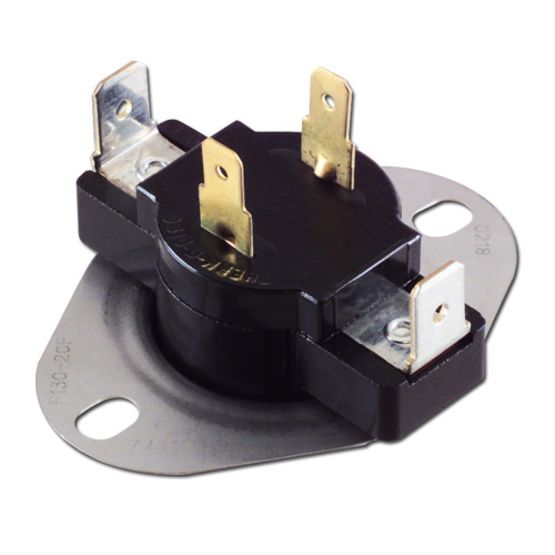

69T Biased Auto Reset Bi-metal Control
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Appliance, HVAC
Brand: Therm-O-Disc
The 69T line of 3/4” (19mm) bi-metal disc temperature controls from Therm–O–Disc® offers multiple temperature operations in a unique, cost effective design. The snap-action bi-metal disc provides high speed contact separation resulting in exceptional life characteristics at electrical loads up to 25 amps at 240 VAC. By utilizing heaters mounted internally, the open or close calibration of the bi-metal disc can be biased lower. The 69T is a cost-effective alternative in applications where multiple temperature control is required.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Biased Auto Reset
- 112°C / 233°F
- 25
- Available in automatic reset single pole, single throw and single pole, double throw switch configurations
- Enclosed or exposed disc
- Wide variety of terminals
