Product Images

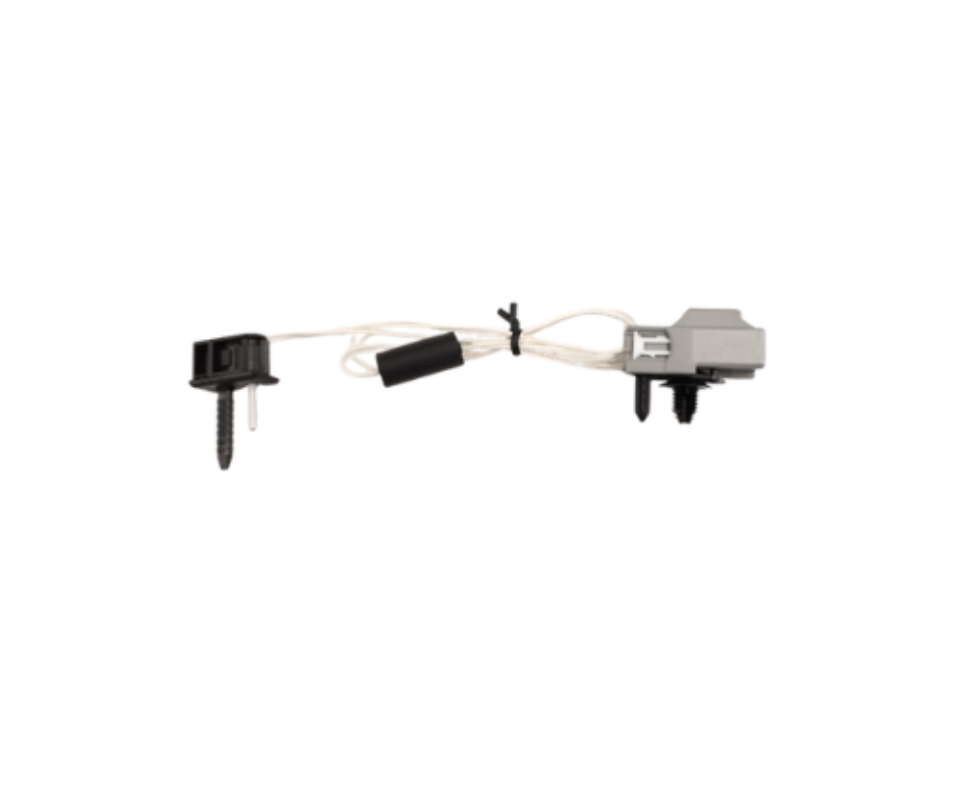

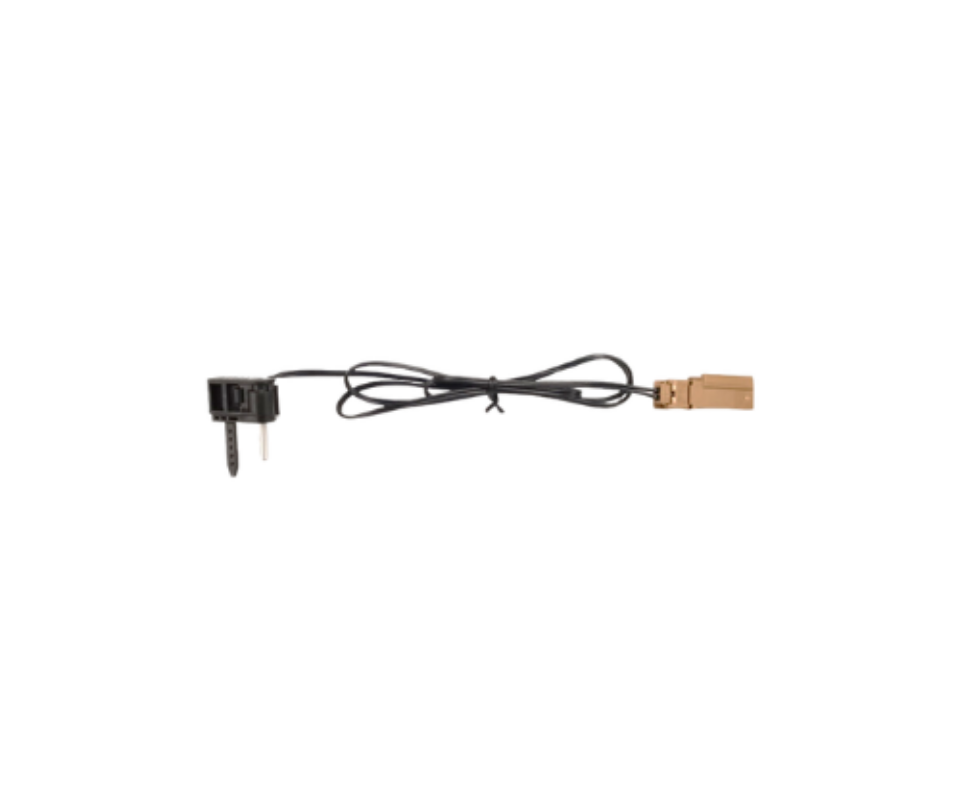

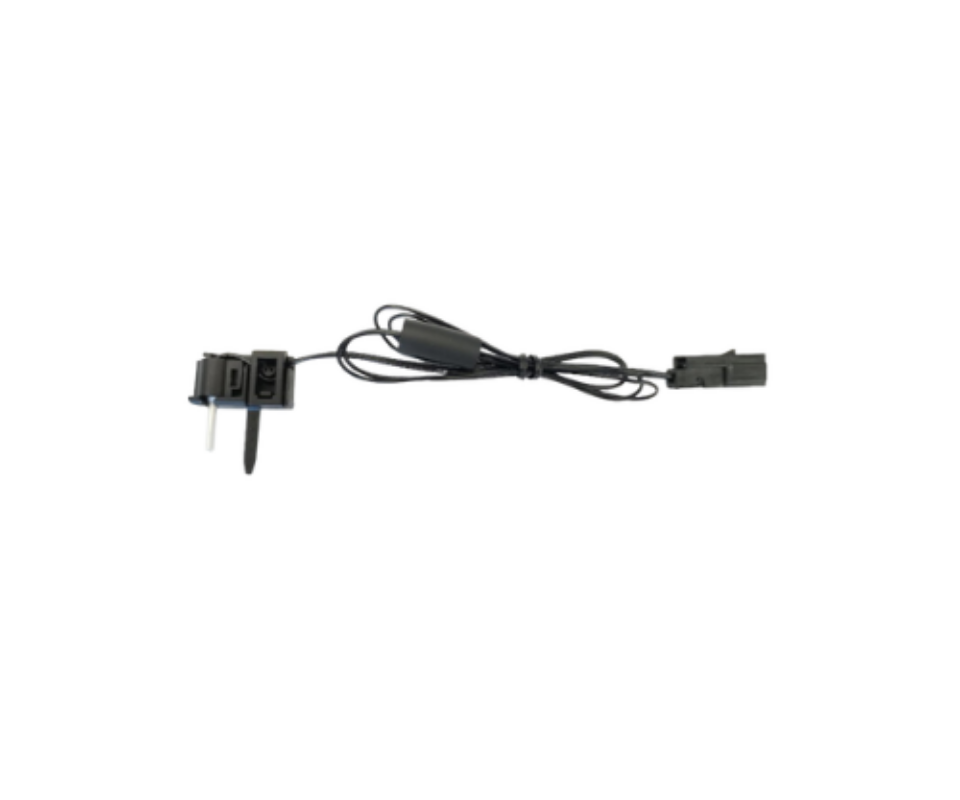

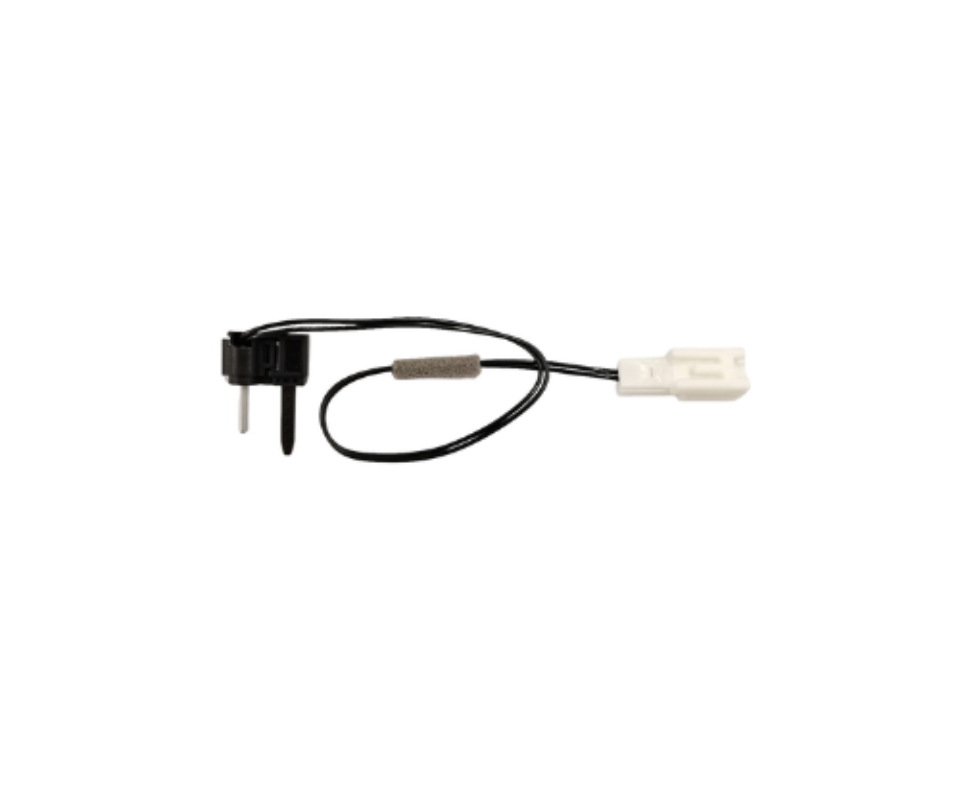

Evaporator Fin Temperature (EFT) Sensor
Technology: Sensing
Product Category: Temperature Sensors
Application: Transportation
Brand: Therm-O-Disc
The Evaporator Fin Temperature sensor is fitted into fins of the evaporator, measures in continuous the temperature of evaporator, providing with the data to optimize air condition performance. Capable of measuring other media – please check with a Sensience Sales Representative for any specific applications.
| Operating temperature range: | -40°C to 85°C |
| Thermal Time Constant: | As fast as 2 seconds from 25C to 85C in water. |
| Tip shell material: | Aluminum anodized |
| Foam material: | EPDM, black |
| Shell interface: | Christmas tree (OD 11.1mm or 12.0mm) |
| Ingress Protection (IP) Code: | IP69K as standard (dust tight, watertight) |
| Clip material: | PP resin, black. Specific resins available upon request |
| Lead wire type: | UL3122 22AWG or FLRY-A 0.50 mm². Twin or single lead wire from 20-26AWG available upon request |
| Connector: | Yazaki, Sumitomo, TE connector upon request |
| Foam tube or foam sheet: | PU or EPDM (optional, upon request) |
