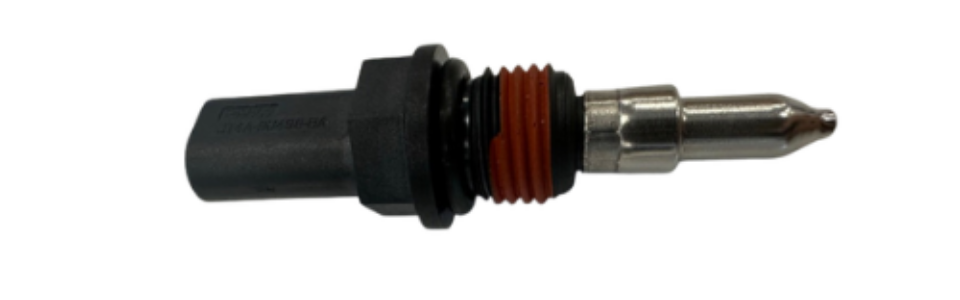

Exhaust Gas Recirculation Temperature (EGRT) Sensor
Technology: Sensing
Product Category: Temperature Sensors
Application: Transportation
Brand: Therm-O-Disc
Exhaust Gas Recirculation Temperature (EGRT) Sensor provides accuracy and reliability to optimize engine performance and efficiency. The stainless-steel metal shell can also be constructed from other customer-specified materials.
- Sensor Type:
- Output Options:
- Installation:
- Supply Voltage:
- Operating Temperature Range:
- Thermal Time Constant T63:
- Ingress Protection (IP) Code:
- Sensor Output Accuracy:
- Long Term Stability:
- Temperature, Thermistor, NTC Type
- Analog
- Screw in
- 5 VDC, pull-up resistor required
- -40C to 150C for connector, up to 250C at sensor tip
< 15 seconds in air, depending on shell size- IP6K9K & IPx7
- ±3% Typical, As narrow as ±1% at key temperatures.
< 3% drift over life
| Shell material: Stainless Steel |
| Integrated Connector: two pin standard USCAR sealed connection (in-line or 90°), using PPS resins |
