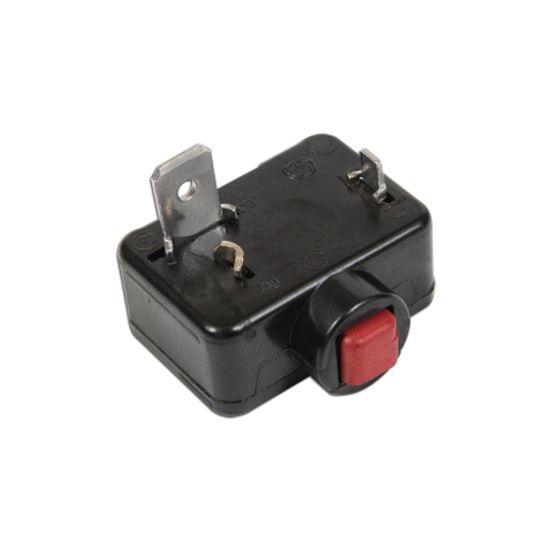

30M Manual Reset Bi-metal Motor Protector
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Appliance
Brand: Therm-O-Disc
The 30M manual reset motor protector from Therm–O–Disc® offers accurate and reliable protection against hazardous overheating in single phase/single voltage A/C motors. Provided in a compact, versatile, cost-effective design, the snap-action of the bi-metal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 50 amps locked rotor at 120VAC, and 37 amps locked rotor at 240VAC. The most common application is garbage disposals.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Manual Reset
- 149°C / 300 °F
- 50 (LRA)
- Current and temperature responsive
- M1 trip free manual reset switching action
- Male quick connect terminals and lead wire assemblies available
- Weld terminals standard
- Wide selection of bi-metal disc and heater combinations available
- Single pole, single throw
