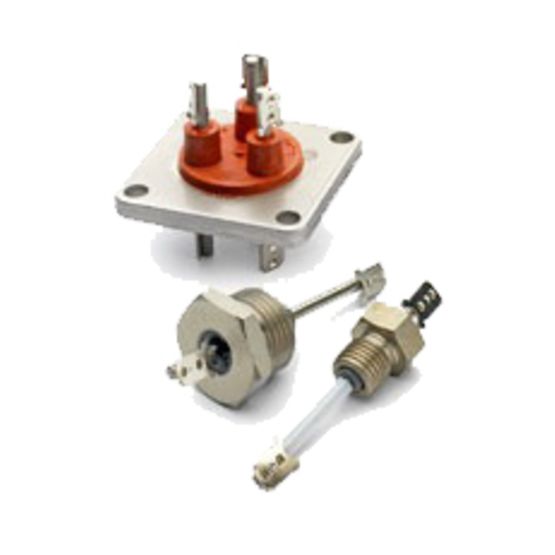

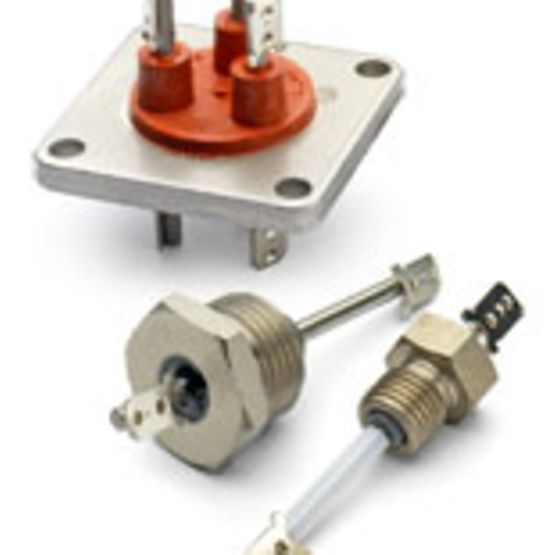

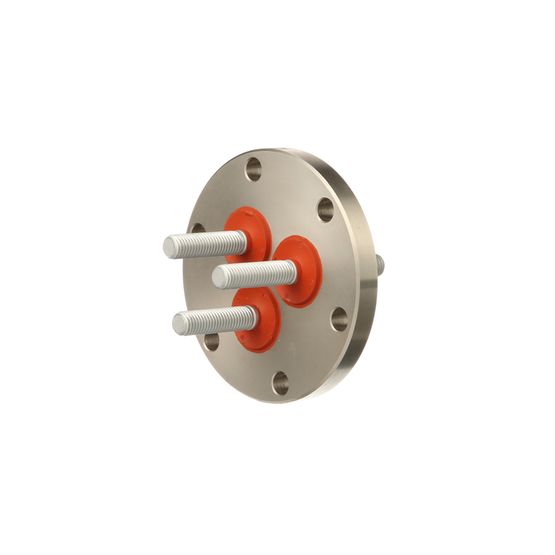

Pump Feedthroughs
Technology: Glass-to-Metal Hermetics
Product Category: Electrical Feedthroughs
Application: Process & Industrial
Brand: Fusite
Fusite designs and develops custom glass-to-metal (GTM) feedthroughs for use in the industrial and commercial pump industry to meet the specific application requirements of our customers. Our feedthroughs stand up to harsh environments and meet the durability and high reliability requirements of major pump OEMs around the world.
- Pin Metal Type:
- Bursting Pressure:
- Minimum Dielectric Voltage:
- Copper Core or Stainless
- 2,250 psi
- 2500 volts @
<0.5 mA Leakage
- Hermeticity:
<1x10-7 standard cc/sec helium - Insulation resistance:
>10,000 megohm @ 500 VDC - UL Recognition on select models
- Dielectric voltage: 2500 volts @
<0.5 mA leakage
